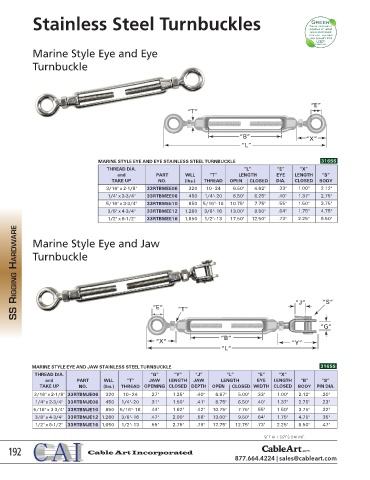

Page 204 - Cable Art Inc Catalog

Stainless Steel Turnbuckles

Marine Style Eye and Eye

Turnbuckle

“E”
“T”

“B” “X”
“L”

MARINE STYLE EYE AND EYE STAINLESS STEEL TURNBUCKLE 316SS
THREAD DIA. “L” “E” “X”
and PART WLL “T” LENGTH EYE LENGTH “B”
TAKE UP NO. (lbs.) THREAD OPEN CLOSED DIA. CLOSED BODY
3/16" x 2-1/8" 33RTBMEE06 320 10 - 24 6.50" 4.62" .33" 1.00" 2.12"
1/4" x 2-3/4" 33RTBMEE08 450 1/4"- 20 8.50" 6.25" .40" 1.37" 2.75"
5/16" x 3-3/4" 33RTBMEE10 850 5/16"- 18 10.75" 7.75" .55" 1.50" 3.75"
3/8" x 4-3/4" 33RTBMEE12 1,260 3/8"- 16 13.00" 9.50" .64" 1.75" 4.75"
1/2" x 6-1/2" 33RTBMEE16 1,650 1/2"- 13 17.50" 12.50" .73" 2.25" 6.50"
SS RIGGING HARDWARE Turnbuckle
Marine Style Eye and Jaw

“S“
“J“
“E“
“T“
“G“
“B“
“X“ “Y“
“L“

MARINE STYLE EYE AND JAW STAINLESS STEEL TURNBUCKLE 316SS
THREAD DIA. “G” “Y” “J” “L” “E” “X”
and PART WLL “T” JAW LENGTH JAW LENGTH EYE LENGTH “B” “S”
TAKE UP NO. (lbs.) THREAD OPENING CLOSED DEPTH OPEN CLOSED WIDTH CLOSED BODY PIN DIA.
3/16" x 2-1/8" 33RTBMJE06 320 10 - 24 .27" 1.25" .40" 6.87" 5.00" .33" 1.00" 2.12" .20"
1/4" x 2-3/4" 33RTBMJE08 450 1/4"- 20 .31" 1.50" .41" 8.75" 6.50" .40" 1.37" 2.75" .23"
5/16" x 3-3/4" 33RTBMJE10 850 5/16"- 18 .44" 1.62" .42" 10.75" 7.75" .55" 1.50" 3.75" .32"
3/8" x 4-3/4" 33RTBMJE12 1,260 3/8"- 16 .47" 2.00" .56" 13.00" 9.50" .64" 1.75" 4.75" .35"
1/2" x 6-1/2" 33RTBMJE16 1,650 1/2"- 13 .55" 2.75" .79" 17.75" 12.75" .73" 2.25" 6.50" .47"

SEE ALL SIZES ONLINE.
