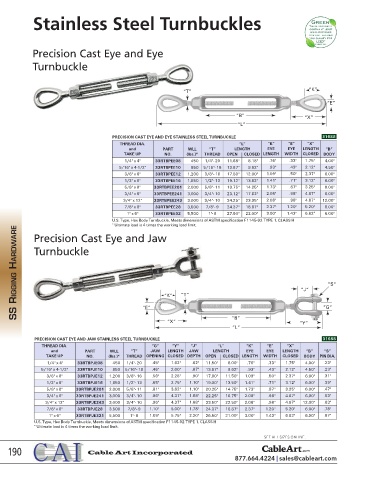

Stainless Steel Turnbuckles

Precision Cast Eye and Eye

Turnbuckle

“T” “K”
“E”

“B” “X”
“L”
PRECISION CAST EYE AND EYE STAINLESS STEEL TURNBUCKLE 316SS
THREAD DIA. “L” “K” “E” “X”
and PART WLL “T” LENGTH EYE EYE LENGTH “B”
TAKE UP NO. (lbs.)* THREAD OPEN CLOSED LENGTH WIDTH CLOSED BODY
1/4" x 4" 33RTBPEE08 450 1/4"- 20 11.68" 8.18" .76" .33" 1.75" 4.00"
5/16" x 4-1/2" 33RTBPEE10 850 5/16"- 18 13.87" 9.62" .93" .43" 2.12" 4.50"
3/8" x 6" 33RTBPEE12 1,200 3/8"- 16 17.50" 12.00" 1.09" .50" 2.37" 6.00"
1/2" x 6" 33RTBPEE16 1,650 1/2"- 13 19.12" 13.62" 1.41" .71" 3.12" 6.00"
5/8" x 6" 33RTBPEE201 2,000 5/8"- 11 19.75" 14.25" 1.73" .87" 3.25" 6.00"
3/4" x 6" 33RTBPEE241 3,000 3/4"- 10 23.12" 17.62" 2.08" .98" 4.87" 6.00"
3/4" x 12" 33RTBPEE243 3,000 3/4"- 10 34.25" 23.35" 2.08" .98" 4.87" 12.00"
7/8" x 6" 33RTBPEE28 3,500 7/8"- 9 24.37" 18.87" 2.37" 1.20" 5.20" 6.00"
1" x 6" 33RTBPEE32 5,500 1"- 8 27.50" 22.00" 3.00" 1.43" 6.62" 6.00"
U.S. Type, Hex Body Turnbuckle, Meets dimensions of ASTM specification F1145-92 TYPE 1, CLASS H
* Ultimate load is 4 times the working load limit.
SS RIGGING HARDWARE Turnbuckle “K“ “T“ “J“ “S“
Precision Cast Eye and Jaw

“E“

“X“ “B“ “Y“ “G“
“L“

PRECISION CAST EYE AND JAW STAINLESS STEEL TURNBUCKLE 316SS
THREAD DIA. “G” “Y” “J” “L” “K” “E” “X”
and PART WLL “T” JAW LENGTH JAW LENGTH EYE EYE LENGTH “B” “S”
TAKE UP NO. (lbs.)* THREAD OPENING CLOSED DEPTH OPEN CLOSED LENGTH WIDTH CLOSED BODY PIN DIA.
1/4" x 4" 33RTBPJE08 450 1/4"- 20 .45" 1.62" .62" 11.50" 8.00" .76" .33" 1.75" 4.00" .23"
5/16" x 4-1/2" 33RTBPJE10 850 5/16"- 18 .46" 2.00" .87" 13.87" 9.62" .93" .43" 2.12" 4.50" .23"
3/8" x 6" 33RTBPJE12 1,200 3/8"- 16 .56" 2.25" .90" 17.00" 11.50" 1.09" .50" 2.37" 6.00" .31"
1/2" x 6" 33RTBPJE16 1,650 1/2"- 13 .65" 2.75" 1.10" 19.00" 13.50" 1.41" .71" 3.12" 6.00" .39"
5/8" x 6" 33RTBPJE201 2,000 5/8"- 11 .81" 3.62" 1.10" 20.25" 14.75" 1.73" .87" 3.25" 6.00" .47"
3/4" x 6" 33RTBPJE241 3,000 3/4"- 10 .96" 4.37" 1.68" 22.25" 16.75" 2.08" .98" 4.87" 6.00" .63"
3/4" x 12" 33RTBPJE243 3,000 3/4"- 10 .96" 4.37" 1.68" 33.50" 22.50" 2.08" .98" 4.87" 12.00" .63"
7/8" x 6" 33RTBPJE28 3,500 7/8"- 9 1.10" 5.00" 1.78" 24.37" 18.87" 2.37" 1.20" 5.20" 6.00" .78"
1" x 6" 33RTBPJE321 5,500 1"- 8 1.09" 5.75" 2.20" 26.50" 21.00" 3.00" 1.43" 6.62" 6.00" .87"
U.S. Type, Hex Body Turnbuckle, Meets dimensions of ASTM specification F1145-92 TYPE 1, CLASS H
* Ultimate load is 4 times the working load limit.
SEE ALL SIZES ONLINE.
