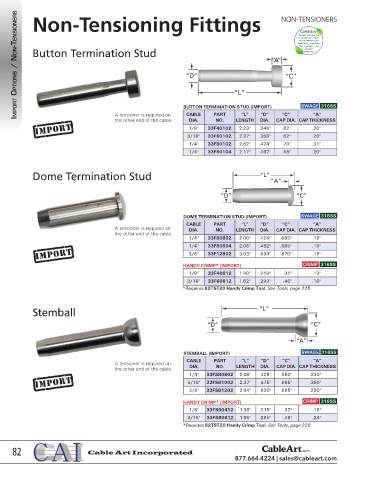

IMPORT OPTIONS / NON-TENSIONERS
Non-Tensioning Fittings NON-TENSIONERS

Button Termination Stud
“A”

“D” “C”

“L”

BUTTON TERMINATION STUD (IMPORT) SWAGE 316SS
A tensioner is required on CABLE PART “L” “D” “C” “A”
the other end of the cable. DIA. NO. LENGTH DIA. CAP DIA. CAP THICKNESS
1/8" 33F40102 2.23" .248" .62" .26"
3/16" 33F60102 2.37" .356" .62" .26"
1/4" 33F80102 2.82" .424" .70" .31"
1/4" 33F80104 2.17" .492" .68" .20"

Dome Termination Stud “L”
“A”

“D” “C”

DOME TERMINATION STUD (IMPORT) SWAGE 316SS
CABLE PART “L” “D” “C” “A”
A tensioner is required on DIA. NO. LENGTH DIA. CAP DIA. CAP THICKNESS
the other end of the cable.
1/4" 33F80802 2.06" .424" .685" .19"
1/4" 33F80804 2.06" .492" .685" .19"
3/8" 33F12802 3.03" .634" .870" .19"

HANDY CRIMP* (IMPORT) CRIMP 316SS
1/8" 33F40812 1.40" .219" .31" .13"
3/16" 33F60812 1.62" .293" .46" .16"
*Requires 82TST20 Handy Crimp Tool. See Tools, page 228.

Stemball “L”

“D” “C”

“A”

STEMBALL (IMPORT) SWAGE 316SS
CABLE PART “L” “D” “C” “A”
A tensioner is required on
the other end of the cable. DIA. NO. LENGTH DIA. CAP DIA. CAP THICKNESS
1/4" 33FSB0802 2.06" .425" .550" .230"
5/16" 33FSB1002 2.37" .475" .665" .350"
3/8" 33FSB1202 3.04" .630" .865" .290"

HANDY CRIMP* (IMPORT) CRIMP 316SS
1/8" 33FSB0412 1.38" .215" .32" .18"
3/16" 33FSB0612 1.65" .295" .46" .24"
*Requires 82TST20 Handy Crimp Tool. See Tools, page 228.
