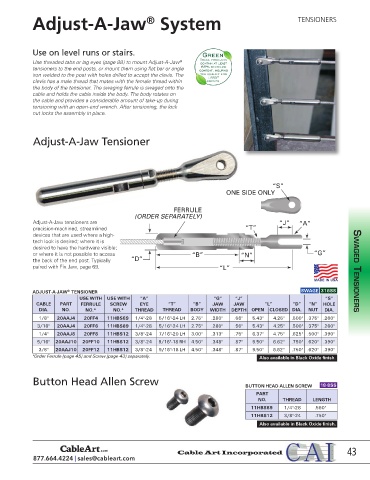

Page 55 - Cable Art Inc Catalog

Adjust-A-Jaw System TENSIONERS
®

Use on level runs or stairs.

Use threaded tabs or lag eyes (page 88) to mount Adjust-A-Jaw
®
tensioners to the end posts, or mount them using flat bar or angle
iron welded to the post with holes drilled to accept the clevis. The
clevis has a male thread that mates with the female thread within
the body of the tensioner. The swaging ferrule is swaged onto the
cable and holds the cable inside the body. The body rotates on
the cable and provides a considerable amount of take-up during
tensioning with an open-end wrench. After tensioning, the lock
nut locks the assembly in place.

Adjust-A-Jaw Tensioner

“S”
ONE SIDE ONLY

FERRULE
(ORDER SEPARATELY)
Adjust-A-Jaw tensioners are “J” “A”
precision-machined, streamlined “T”
devices that are used where a high-
tech look is desired; where it is
desired to have the hardware visible;
or where it is not possible to access “B” “N” “G”
the back of the end post. Typically “D”
paired with Fix Jaw, page 69. “L” SWAGED TENSIONERS

®
ADJUST-A-JAW TENSIONER SWAGE 316SS
USE WITH USE WITH “A” “G” “J” “S”
CABLE PART FERRULE SCREW EYE “T” “B” JAW JAW “L” “D” “N” HOLE
DIA. NO. NO.* NO.* THREAD THREAD BODY WIDTH DEPTH OPEN CLOSED DIA. NUT DIA.
1/8" 20AAJ4 20FF4 11HBS89 1/4"-28 5/16"-24 LH 2.75" .260" .56" 5.43" 4.25" .500" .375" .260"
3/16" 20AAJ4 20FF6 11HBS89 1/4"-28 5/16"-24 LH 2.75" .260" .56" 5.43" 4.25" .500" .375" .260"
1/4" 20AAJ8 20FF8 11HBS12 3/8"-24 7/16"-20 LH 3.00" .313" .75" 6.37" 4.75" .625" .500" .390"
5/16" 20AAJ10 20FF10 11HBS12 3/8"-24 9/16"-18 RH 4.50" .348" .87" 9.50" 6.62" .750" .620" .390"
3/8" 20AAJ10 20FF12 11HBS12 3/8"-24 9/16"-18 LH 4.50" .348" .87" 9.50" 6.62" .750" .620" .390"
*Order Ferrule (page 45) and Screw (page 43) separately. Also available in Black Oxide finish.

Button Head Allen Screw BUTTON HEAD ALLEN SCREW 18-8SS

PART
NO. THREAD LENGTH
11HBS89 1/4"-28 .560"
11HBS12 3/8"-24 .750"
Also available in Black Oxide finish.
