P. 57

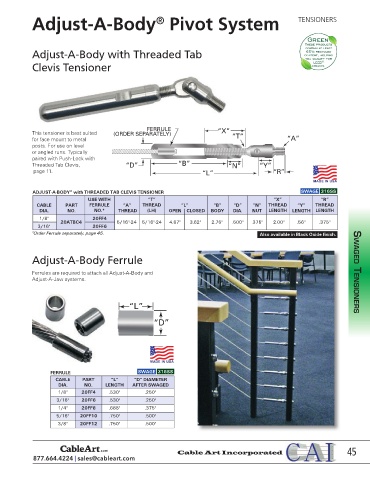

Adjust-A-Body  Pivot System                                                             TENSIONERS
                                                            ®

                   Adjust-A-Body with Threaded Tab

                   Clevis Tensioner












                                                         FERRULE
                   This tensioner is best suited   (ORDER SEPARATELY)           “X”  “T”
                   for face mount to metal                                                             “A”
                   posts. For use on level
                   or angled runs. Typically
                   paired with Push-Lock with
                   Threaded Tab Clevis,           “D”              “B”              “N”       “Y”
                    page 11.                                               “L”                     “R”


                   ADJUST-A-BODY  with THREADED TAB CLEVIS TENSIONER                                        SWAGE  316SS
                                     USE WITH            “T”                                       “X”            “R”
                    CABLE     PART    FERRULE    “A”   THREAD       “L”        “B”    “D”   “N”  THREAD    “Y”   THREAD
                     DIA.      NO.     NO.*     THREAD   (LH)   OPEN  CLOSED  BODY   DIA.   NUT  LENGTH  LENGTH  LENGTH
                     1/8"              20FF4
                            20ATBC4            5/16"-24  5/16"-24  4.87"  3.62"  2.75"  .500"  .375"  2.00"  .56"  .375"
                     3/16"             20FF6
                   *Order Ferrule separately, page 45.                                        Also available in Black Oxide finish.



                   Adjust-A-Body Ferrule

                   Ferrules are required to attach all Adjust-A-Body and                                                     SWAGED TENSIONERS
                   Adjust-A-Jaw systems.




                                                   “L”

                                                           “D”









                         FERRULE                      SWAGE  316SS
                           CABLE   PART      “L”     “D” DIAMETER
                            DIA.    NO.    LENGTH   AFTER SWAGED
                           1/8"    20FF4    .530"       .250"
                           3/16"   20FF6    .530"       .250"
                           1/4"    20FF8    .688"       .375"
                           5/16"   20FF10   .750"       .500"
                           3/8"    20FF12   .750"       .500"



                                                                                                                           45
