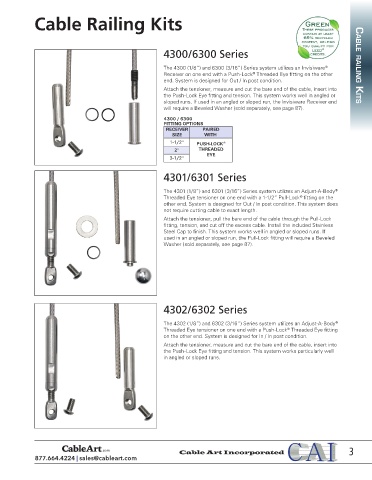

Cable Railing Kits

4300/6300 Series

The 4300 (1/8”) and 6300 (3/16”) Series system utilizes an Invisiware Cable railing Kits
®
Receiver on one end with a Push-Lock Threaded Eye fitting on the other
®
end. System is designed for Out / In post condition.
Attach the tensioner, measure and cut the bare end of the cable, insert into
the Push-Lock Eye fitting and tension. This system works well in angled or
sloped runs. If used in an angled or sloped run, the Invisiware Receiver end
will require a Beveled Washer (sold separately, see page 87).
4300 / 6300
FITTING OPTIONS
RECEIVER PAIRED
SIZE WITH
1-1/2" PUSH-LOCK
2" THREADED
EYE
3-1/2"

4301/6301 Series

The 4301 (1/8”) and 6301 (3/16”) Series system utilizes an Adjust-A-Body
®
Threaded Eye tensioner on one end with a 1-1/2” Pull-Lock fitting on the
®
other end. System is designed for Out / In post condition. This system does
not require cutting cable to exact length.
Attach the tensioner, pull the bare end of the cable through the Pull-Lock
fitting, tension, and cut off the excess cable. Install the included Stainless
Steel Cap to finish. This system works well in angled or sloped runs. If
used in an angled or sloped run, the Pull-Lock fitting will require a Beveled
Washer (sold separately, see page 87).

4302/6302 Series

The 4302 (1/8”) and 6302 (3/16”) Series system utilizes an Adjust-A-Body
®
Threaded Eye tensioner on one end with a Push-Lock Threaded Eye fitting
®
on the other end. System is designed for In / In post condition.
Attach the tensioner, measure and cut the bare end of the cable, insert into
the Push-Lock Eye fitting and tension. This system works particularly well
in angled or sloped runs.
