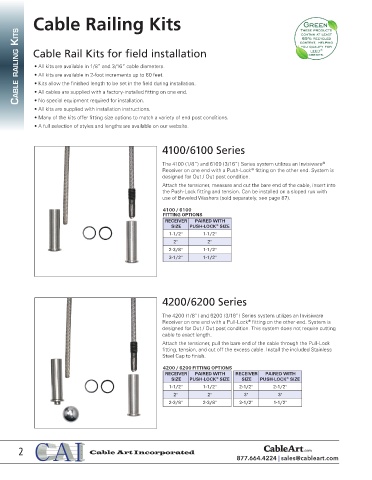

Page 14 - Cable Art Inc Catalog

Cable Railing Kits

Cable railing Kits Cable Rail Kits for field installation

• All kits are available in 1/8” and 3/16” cable diameters.
• All kits are available in 2-foot increments up to 60 feet.
• Kits allow the finished length to be set in the field during installation.
• All cables are supplied with a factory-installed fitting on one end.
• No special equipment required for installation.
• All kits are supplied with installation instructions.
• Many of the kits offer fitting size options to match a variety of end post conditions.
• A full selection of styles and lengths are available on our website.

4100/6100 Series

The 4100 (1/8”) and 6100 (3/16”) Series system utilizes an Invisiware
®
Receiver on one end with a Push-Lock fitting on the other end. System is
®
designed for Out / Out post condition.
Attach the tensioner, measure and cut the bare end of the cable, insert into
the Push-Lock fitting and tension. Can be installed on a sloped run with
use of Beveled Washers (sold separately, see page 87).
4100 / 6100
FITTING OPTIONS
RECEIVER PAIRED WITH
SIZE PUSH-LOCK SIZE
1-1/2" 1-1/2"
2" 2"
2-3/8" 1-1/2"
3-1/2" 1-1/2"

4200/6200 Series

The 4200 (1/8”) and 6200 (3/16”) Series system utilizes an Invisiware
Receiver on one end with a Pull-Lock fitting on the other end. System is
®
designed for Out / Out post condition. This system does not require cutting
cable to exact length.
Attach the tensioner, pull the bare end of the cable through the Pull-Lock
fitting, tension, and cut off the excess cable. Install the included Stainless
Steel Cap to finish.

4200 / 6200 FITTING OPTIONS
RECEIVER PAIRED WITH RECEIVER PAIRED WITH
SIZE PUSH-LOCK SIZE SIZE PUSH-LOCK SIZE
1-1/2" 1-1/2" 2-1/2" 2-1/2"
2" 2" 3" 3"
2-3/8" 2-3/8" 3-1/2" 1-1/2"
