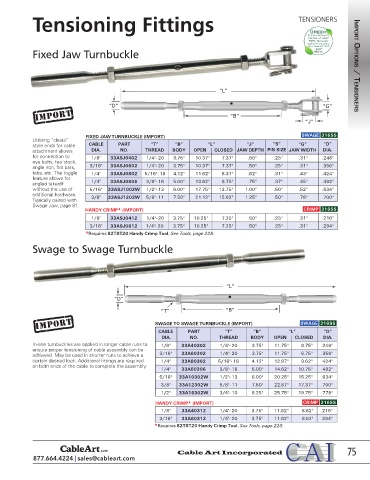

Page 87 - Cable Art Inc Catalog

Tensioning Fittings TENSIONERS

Fixed Jaw Turnbuckle IMPORT OPTIONS / TENSIONERS

“L”

“D” “G”
“B”
“J”

FIXED JAW TURNBUCKLE (IMPORT) SWAGE 316SS
Utilizing “clevis”
style ends for cable CABLE PART “T” “B” “L” “J” “S” “G” “D”
attachment allows DIA. NO. THREAD BODY OPEN CLOSED JAW DEPTH PIN SIZE JAW WIDTH DIA.
for connection to 1/8" 33ASJ0402 1/4"- 20 3.75" 10.37" 7.37" .50" .25" .31" .248"
eye bolts, tee stock,
angle iron, flat bars, 3/16" 33ASJ0602 1/4"- 20 3.75" 10.37" 7.37" .50" .25" .31" .356"
tabs, etc. The toggle 1/4" 33ASJ0802 5/16"- 18 4.12" 11.62" 8.37" .62" .31" .43" .424"
feature allows for
angled takeoff 1/4" 33ASJ0806 3/8"- 16 5.00" 13.62" 9.75" .75" .37" .45" .492"
without the use of 5/16" 33ASJ1002W 1/2"- 13 6.00" 17.75" 12.75" 1.00" .50" .52" .634"
additional hardware.
Typically paired with 3/8" 33ASJ1202W 5/8"- 11 7.50" 21.12" 15.62" 1.25" .50" .76" .700"
Swage Jaw, page 81.
HANDY CRIMP* (IMPORT) CRIMP 316SS
1/8" 33ASJ0412 1/4"- 20 3.75" 10.25" 7.25" .50" .25" .31" .216"
3/16" 33ASJ0612 1/4"- 20 3.75" 10.25" 7.25" .50" .25" .31" .294"
*Requires 82TST20 Handy Crimp Tool. See Tools, page 228.

Swage to Swage Turnbuckle

“L”
“D”

“T” “B”

SWAGE TO SWAGE TURNBUCKLE (IMPORT) SWAGE 316SS
CABLE PART “T” “B” “L” “D”
DIA. NO. THREAD BODY OPEN CLOSED DIA.
In-line turnbuckles are applied in longer cable runs to 1/8" 33A40302 1/4"- 20 3.75" 11.75" 8.75" .248"
ensure proper tensioning of cable assembly can be
achieved. May be used in shorter runs to achieve a 3/16" 33A60302 1/4"- 20 3.75" 11.75" 8.75" .356"
certain desired look. Additional fittings are required 1/4" 33A80302 5/16"- 18 4.12" 12.87" 9.62" .424"
on both ends of the cable to complete the assembly.
1/4" 33A80306 3/8"- 16 5.00" 14.62" 10.75" .492"
5/16" 33A10302W 1/2"- 13 6.00" 20.25" 15.25" .634"
3/8" 33A12302W 5/8"- 11 7.50" 22.87" 17.37" .700"
1/2" 33A16302W 3/4"- 10 8.25" 25.75" 19.75" .778"
HANDY CRIMP* (IMPORT) CRIMP 316SS
1/8" 33A40312 1/4"- 20 3.75" 11.62" 8.62" .216"
3/16" 33A60312 1/4"- 20 3.75" 11.62" 8.62" .294"
*Requires 82TST20 Handy Crimp Tool. See Tools, page 228.
