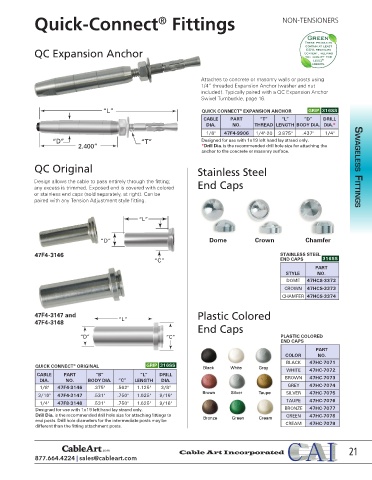

Page 33 - Cable Art Inc Catalog

Quick-Connect Fittings NON-TENSIONERS
®

QC Expansion Anchor

Attaches to concrete or masonry walls or posts using
1/4” threaded Expansion Anchor (washer and nut
included). Typically paired with a QC Expansion Anchor
Swivel Turnbuckle, page 16.
“L” QUICK CONNECT EXPANSION ANCHOR GRIP 316SS
CABLE PART “T” “L” “D” DRILL
DIA. NO. THREAD LENGTH BODY DIA. DIA.*
1/8" 47F4-9906 1/4"-20 3.875" .437" 1/4"
“D” “T” Designed for use with 1x19 left hand lay strand only.
2.400” *Drill Dia. is the recommended drill hole size for attaching the
anchor to the concrete or masonry surface.

QC Original Stainless Steel swageless Fittings

Design allows the cable to pass entirely through the fitting; End Caps
any excess is trimmed. Exposed end is covered with colored
or stainless end caps (sold separately, at right). Can be
paired with any Tension Adjustment style fitting.

“L”

“D” Dome Crown Chamfer
47F4-3146 STAINLESS STEEL
“C” END CAPS 316SS
PART
STYLE NO.
DOME 47HCS-3372
CROWN 47HCS-3373
CHAMFER 47HCS-3374

47F4-3147 and Plastic Colored
47F4-3148 “L”
End Caps
“D” “C” PLASTIC COLORED
END CAPS
PART
COLOR NO.
BLACK 47HC-7071
QUICK CONNECT ORIGINAL GRIP 316SS
WHITE 47HC-7072
CABLE PART “B” “L” DRILL
DIA. NO. BODY DIA. “C” LENGTH DIA. BROWN 47HC-7073
1/8" 47F4-3146 .375" .562" 1.125" 3/8" GREY 47HC-7074
SILVER 47HC-7075
3/16" 47F4-3147 .531" .750" 1.625" 9/16"
TAUPE 47HC-7076
1/4" 47F8-3148 .531" .750" 1.625" 9/16"
Designed for use with 1x19 left hand lay strand only. BRONZE 47HC-7077
Drill Dia. is the recommended drill hole size for attaching fittings to GREEN 47HC-7078
end posts. Drill hole diameters for the intermediate posts may be
different than the fitting attachment posts. CREAM 47HC-7079
