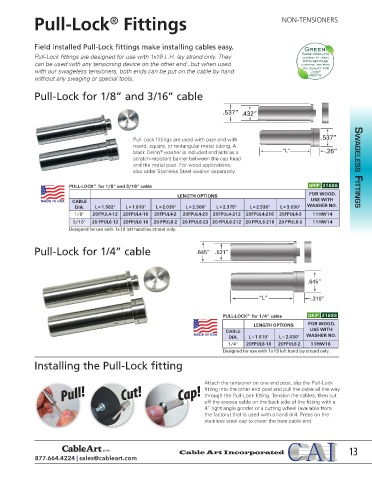

Page 25 - Cable Art Inc Catalog

Pull-Lock Fittings NON-TENSIONERS
®

Field installed Pull-Lock fittings make installing cables easy.
Pull-Lock fittings are designed for use with 1x19 L.H. lay strand only. They
can be used with any tensioning device on the other end...but when used
with our swageless tensioners, both ends can be put on the cable by hand
without any swaging or special tools.

Pull-Lock for 1/8” and 3/16” cable

.537” .432”

Pull-Lock fittings are used with pipe and with .537”
round, square, or rectangular metal tubing. A
®
black Delrin washer is included and acts as a “L” .26”
scratch-resistant barrier between the cap head
and the metal post. For wood applications, swageless Fittings
also order Stainless Steel washer separately.

PULL-LOCK for 1/8” and 3/16” cable GRIP 316SS
LENGTH OPTIONS FOR WOOD,
CABLE USE WITH
DIA. L = 1.562" L = 1.810" L = 2.030" L = 2.300" L = 2.375" L = 2.530" L = 3.030" WASHER NO.
1/8" 20FPUL4-12 20FPUL4-18 20FPUL4-2 20FPUL4-23 20FPUL4-212 20FPUL4-216 20FPUL4-3 11HW14
3/16" 20-FPUL6-12 20FPUL6-18 20-FPUL6-2 20-FPUL6-23 20-FPUL6-212 20-FPUL6-216 20-FPUL6-3 11HW14
Designed for use with 1x19 left hand lay strand only.

Pull-Lock for 1/4” cable .645” .531”

.645”

“L” .310”

PULL-LOCK for 1/4” cable GRIP 316SS
LENGTH OPTIONS FOR WOOD,
CABLE USE WITH
DIA. L = 1.810" L = 2.030" WASHER NO.
1/4" 20FPUL8-18 20FPUL8-2 11HW16
Designed for use with 1x19 left hand lay strand only.

Installing the Pull-Lock fitting

Attach the tensioner on one end post, slip the Pull-Lock
fitting into the other end post and pull the cable all the way
through the Pull-Lock fitting. Tension the cables, then cut
off the excess cable on the back side of the fitting with a
4” right angle grinder or a cutting wheel (available from
the factory) that is used with a hand drill. Press on the
stainless steel cap to cover the bare cable end.
