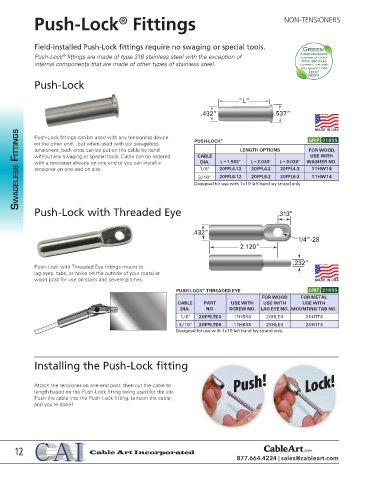

Page 24 - Cable Art Inc Catalog

Push-Lock Fittings NON-TENSIONERS
®

Field-installed Push-Lock fittings require no swaging or special tools.
Push-Lock fittings are made of type 316 stainless steel with the exception of
®
internal components that are made of other types of stainless steel.

Push-Lock

“L”

.432” .537” GRIP 316SS

swageless Fittings on the other end…but when used with our swageless Designed for use with 1x19 left hand lay strand only. WASHER NO.
Push-Lock fittings can be used with any tensioning device
PUSH-LOCK
LENGTH OPTIONS
tensioners, both ends can be put on the cable by hand
FOR WOOD,
USE WITH
CABLE
without any swaging or special tools. Cable can be ordered
L = 2.030"
L = 3.030"
L = 1.562"
DIA.
with a tensioner already on one end or you can install a
20FPL4-2
20FPL4-12
1/8"
20FPL4-3
tensioner on one end on site.
11HW14
20FPL6-2
20FPL6-3
20FPL6-12
11HW14
3/16"
Push-Lock with Threaded Eye .313”
.432”
1/4”-28
2.120”
.232”
Push-Lock with Threaded Eye fittings mount to
lag eyes, tabs, or holes on the outside of your metal or
wood post for use on stairs and severe pitches.
PUSH-LOCK THREADED EYE GRIP 316SS
FOR WOOD FOR METAL
CABLE PART USE WITH USE WITH USE WITH
DIA. NO. SCREW NO. LAG EYE NO. MOUNTING TAB NO.
1/8" 20FPLTE4 11HBS8 20HLE4 20HTT4
3/16" 20FPLTE6 11HBS8 20HLE4 20HTT4
Designed for use with 1x19 left hand lay strand only.

Installing the Push-Lock fitting

Attach the tensioner on one end post, then cut the cable to
length based on the Push-Lock fitting being used for the job.
Push the cable into the Push-Lock fitting, tension the cable,
and you’re done!
