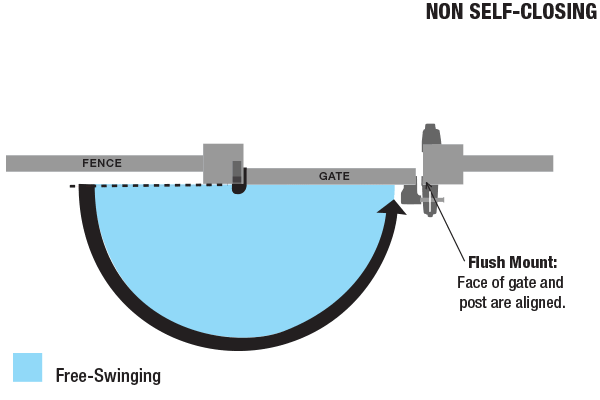

The SureClose SM hinge was designed for large access control, double drive, estate and heavy commercial and residential gates that don’t self-close, with a point load up to 1,500lb. (680kg.). The SM model features extra large hinge pins and dual thrust bearings designed for high loads. Save money when SM is used as the bottom load bearing hinge along with a SureClose 57 or SureClose 108 closer.
All SureClose hinges and closers come packaged with the gate mounting bracket included. Post mounting brackets sold separately.
Gate mounting brackets: Can be fastened by drilling and tapping or with through bolts. See post brackets for their fastener requirements.
