Quick-Connect® Threaded Terminal
|
| Quick-Connect® Threaded Terminal |
GRIP |
|
316SS |

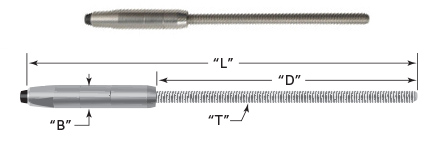

| Cable Dia. |
Part No. |
"T"
THREAD |
"D"
THREAD LENGTH |
"L"
LENGTH
|
"B"
BODY DIA. |
Pilot Drill
Dia.
|
| 1/8" |
47F4-9904 |
1/4"-20 |
5.000" |
7.400" |
.437" |
* 5/16" |
| 3/16" |
47F6-9804 |
5/16"-24 |
4.900" |
7.400" |
.540" |
* 7/16" |
| Please click on part number to order. |
| * May counterbore with slightly larger diameter drill to embed Quick-Connect® body into post. |
| Quick-Connect® SS fittings pair with 1x19 construction cable only. |
Inserts through a drill hole in the post and is secured and adjusted with a washer nut (sold separately). Use beveled washer for angled stair terminations and flat washer for added bearing surface on wood posts. See End Fitting Options, sold separately.
Typically paired with another Quick-Connect® Threaded Terminal but can be paired with any other Fixed End or Tension Adjustment style fitting.
Drill Dia. is the recommended drill hole size for attaching fittings to end posts. Drill hole diameters for the intermediate posts may be different than the fitting attachment posts. See the Recommended Drill Hole Charts. |
|
|
|
