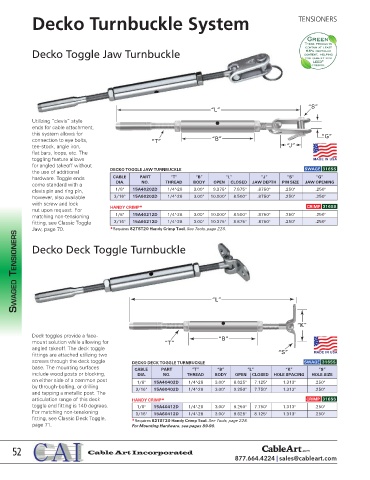

Page 64 - Cable Art Inc Catalog
P. 64

Decko Turnbuckle System                                                                 TENSIONERS


                   Decko Toggle Jaw Turnbuckle










                                                                                                              “S”
                                                                              “L”
                   Utilizing “clevis” style
                   ends for cable attachment,
                   this system allows for                                                                          “G”
                   connection to eye bolts,               “T”                 “B”
                   tee-stock, angle iron,                                                              “J”
                   flat bars, loops, etc. The
                   toggling feature allows
                   for angled takeoff without
                   the use of additional     DECKO TOGGLE JAW TURNBUCKLE                                     SWAGE  316SS
                   hardware. Toggle ends       CABLE       PART   “T”    “B”       “L”         “J”     “S”       “G”
                   come standard with a         DIA.      NO.   THREAD   BODY   OPEN   CLOSED  JAW DEPTH   PIN SIZE   JAW OPENING
                   clevis pin and ring pin,   1/8"  15A40202D   1/4"-28  3.00"  9.375"  7.875"  .8750"  .250"    .250"
                   however, also available    3/16"  15A60202D  1/4"-28  3.00"  10.000"  8.500"  .8750"  .250"   .250"
                   with screw and lock                                                                        CRIMP  316SS
                   nut upon request. For     HANDY CRIMP*
                   matching non-tensioning    1/8"  15A40212D   1/4"-28  3.00"  10.000"  8.500"  .8750"  .250"   .250"
                   fitting, see Classic Toggle   3/16"  15A60212D  1/4"-28  3.00"  10.375"  8.875"  .8750"  .250"  .250"
                   Jaw, page 70.             *Requires 82TST20 Handy Crimp Tool. See Tools, page 228.
              SWAGED TENSIONERS

                   Decko Deck Toggle Turnbuckle









                                                                              “L”



                                                                                                           “K”
                   Deck toggles provide a face-                                  “B”
                   mount solution while allowing for           “T”
                   angled takeoff. The deck toggle
                   fittings are attached utilizing two                                               “S”
                   screws through the deck toggle   DECKO DECK TOGGLE TURNBUCKLE                             SWAGE  316SS
                   base. The mounting surfaces        CABLE       PART   “T”    “B”       “L”          “K”        “S”
                   include wood posts or blocking,      DIA.      NO.   THREAD   BODY   OPEN   CLOSED  HOLE SPACING   HOLE SIZE
                   on either side of a common post    1/8"  15A40402D  1/4"-28  3.00"  8.625"  7.125"  1.313"   .250"
                   by through-bolting, or drilling   3/16"  15A60402D  1/4"-28  3.00"  9.250"  7.750"  1.313"   .250"
                   and tapping a metallic post. The
                   articulation range of this deck   HANDY CRIMP*                                             CRIMP  316SS
                   toggle end fitting is 140 degrees.   1/8"  15A40412D  1/4"-28  3.00"  9.250"  7.750"  1.313"  .250"
                   For matching non-tensioning       3/16"  15A60412D  1/4"-28  3.00"  9.625"  8.125"  1.313"   .250"
                   fitting, see Classic Deck Toggle,   *Requires 82TST20 Handy Crimp Tool. See Tools, page 228.
                   page 71.                         For Mounting Hardware, see pages 89-90.
