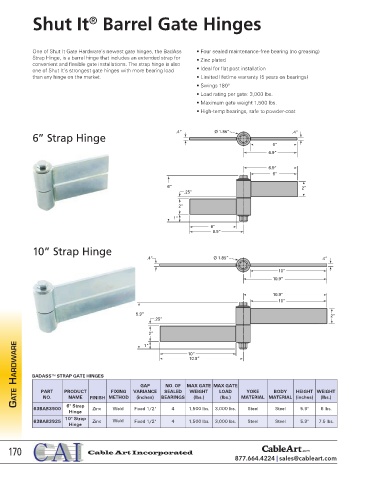

Page 182 - Cable Art Inc Catalog

Shut It Barrel Gate Hinges
®

One of Shut It Gate Hardware’s newest gate hinges, the BadAss • Four sealed maintenance-free bearing (no greasing)
Strap Hinge, is a barrel hinge that includes an extended strap for • Zinc plated
convenient and flexible gate installations. The strap hinge is also
one of Shut It’s strongest gate hinges with more bearing load • Ideal for flat post installation
than any hinge on the market. • Limited lifetime warranty (5 years on bearings)
• Swings 180°
• Load rating per gate: 3,000 lbs.
• Maximum gate weight 1,500 lbs.
• High-temp bearings, safe to powder-coat

.4” Ø 1.85” .4”
6” Strap Hinge
6”
6.9”

6.9”
6”

6” 2”
.25”

2”
1”
6”
6.9”

10” Strap Hinge

.4” Ø 1.85” .4”
10”
10.9”

10.9”
10”

5.9” 2”
.25”

2” 10”
GATE HARDWARE BADASS™ STRAP GATE HINGES FIXING VARIANCE SEALED MAX GATE MAX GATE YOKE BODY HEIGHT WEIGHT
1”
10.9”

NO. OF
GAP
PRODUCT
LOAD
PART
WEIGHT
NO.
(lbs.)
NAME
(inches)
(lbs.)
63BAB3900 6" Strap FINISH METHOD Fixed 1/2" BEARINGS 1,500 lbs. 3,000 lbs. MATERIAL MATERIAL (inches) (lbs.)
4
Steel
6 lbs.
5.9"
Steel
Weld
Zinc
Hinge
10" Strap
63BAB3925 Zinc Weld Fixed 1/2" 4 1,500 lbs. 3,000 lbs. Steel Steel 5.9" 7.5 lbs.
Hinge
