Page 155 - Cable Art Inc Catalog
P. 155
1.937”
2.125”
1.562”
1.562”

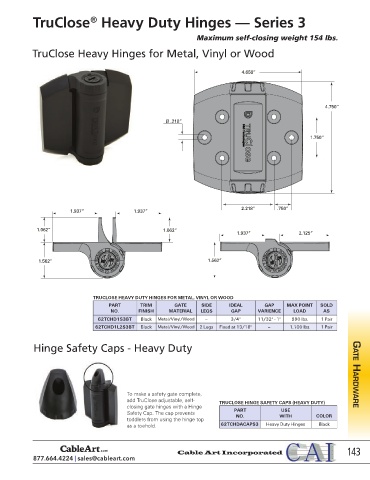

TruClose Heavy Duty Hinges — Series 3
®
Maximum self-closing weight 154 lbs. 1.062” 1.937” 1.937” 1.062”
TruClose Heavy Hinges for Metal, Vinyl or Wood
4.656”
4.750”
Ø .218”
1.750”
2.218” .750”
1.937” 1.937”
1.937” 1.937”
1.937” 2.125” 1.062” 1.062”
1.937” 2.125” 1.062” 1.062”
1.562”
1.562” 1.562”
1.562”
TRUCLOSE HEAVY DUTY HINGES FOR METAL, VINYL OR WOOD
PART TRIM GATE SIDE IDEAL GAP MAX POINT SOLD
NO. FINISH MATERIAL LEGS GAP VARIENCE LOAD AS
62TCHD1S3BT Black Metal/Vinyl/Wood -- 3/4" 11/32" - 1" 990 lbs. 1 Pair
4.656” 4.656”
62TCHD1L2S3BT Black Metal/Vinyl/Wood 2 Legs Fixed at 13/16" -- 1,100 lbs. 1 Pair
Hinge Safety Caps - Heavy Duty
4.750”
4.750”
Ø .218”
Ø .218” GATE HARDWARE
1.750” 1.750”
To make a safety gate complete,
add TruClose adjustable, self- TRUCLOSE HINGE SAFETY CAPS (HEAVY DUTY)
closing gate hinges with a Hinge
Safety Cap. The cap prevents PART USE
toddlers from using the hinge top NO. WITH COLOR
as a toehold. 62TCHDACAPS3 Heavy Duty Hinges Black
143
2.218” .750”
2.218” .750”
Cat21 S9 138-153.indd 143 12/3/20 1:07 AM
