Product Detail


Manufacturer D & D Technologies

Aluminum BadAss™ Gate Hinge - CI3400


Price: $69.88
Quantity:

Product discounts do not apply to this item

Untitled Document
  • Overview
  • Schematic

PART NO. GAP
VARIANCE
(Inch/mm**)		 FINISH NO. OF
SEALED
BEARINGS		 MAX GATE
WEIGHT
(lbs/kg)		 MAX GATE
LOAD
(lbs/kg)		 YOKE
MATERIAL*		 BODY
MATERIAL		 HEIGHT
(Inch/mm)		 WEIGHT
(lbs/kg)
63BA3400 2.4"-2.9"
(61-74mm)		 Unfinished 2 600 lbs
(170kg)		 1,000 lbs
(450kg)		 Aluminum Aluminum 3.8"
(97mm)		 2 lbs
(1kg)
*For welding yoke to round fence post, weld 1½" x ½" x â…›" (38 x 13 x 3mm) A36 steel bar channel to yoke first. After cooling, weld bar channel to fence post.
** Adjustable yoke for perfect installations.
Like The ORGINAL BadAss™, The Aluminum BadAss™ Gate Hinge is CNC machined to the tightest tolerances in the industry. Unlike The ORIGINAL, the Aluminum BadAss™ is made out of aluminum. Due to It's unique bushing design The Aluminum BadAss™, like all other SHUT IT™ gate hinges, produces near frictionless movement with maintenance free usage.

KEY FEATURES
• Two sealed maintenance free bearings (no greasing)
• Adjustable yoke for perfect installations
• Ideal for both flat and round post installations
• Load rating per gate: 1,000 Ibs (450kg)
• Maximum gate weight: 600 Ibs (270kg)

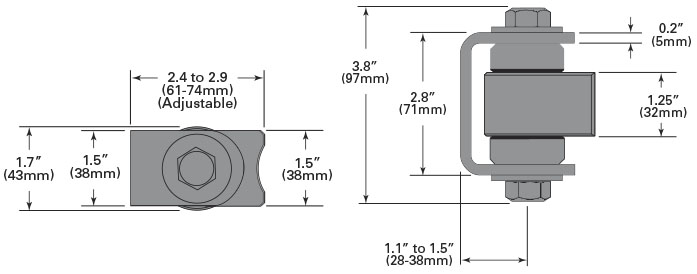

Schmatic
