Product Detail


Manufacturer Phoenix

Jaw & Eye Turnbuckle 5/16" x 4 1/2"
(S/S Precision Cast)


Price: $14.12
Quantity:

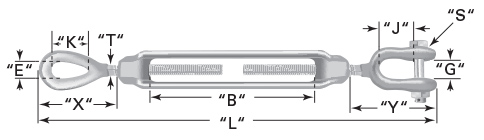

schematic
Jaw & Eye Precision Cast Stainless Steel Turnbuckle  316SS
ThreadDia.
& Take Up		 Part No. WLL
(lbs.)*		 "T"
THREAD		 "G"
JAW
OPENING		 "Y"
LENGTH
CLOSED		 "J"
JAW
DEPTH		 "L"
LENGTH		 "K"
EYE
LENGTH		 "E"
EYE
WIDTH		 "X"
LENGTH
CLOSED		 "B"
BODY		 "S"
PIN
DIA.
OPEN CLOSED
5/16" x 4-1/2" 33RTBPJE10 850 5/16"- 18 .46" 2.00" .87" 13.87" 9.62" .93" .43" 2.12" 4.50" .23"
U.S. Type, Hex Body Turnbuckle, Meets dimensions of ASTM specification F1145-92 TYPE 1, CLASS H
 * Ultimate Load is 4 times the Working Load Limit.
