Traditional Lag Stud Turnbuckles (Short Barrel)

Made in USA
  • Traditional Lag Stud Turnbuckle
  • How It Works

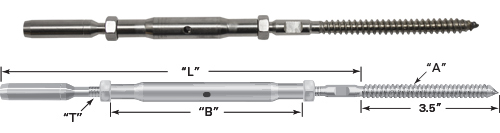

schematic
Traditional Lag Stud Turnbuckles (Short Barrel) SWAGE  316SS
Cable Dia. Part No. "A"
LAG
THREAD
"T"
THREAD
"B"
BODY
"L"
LENGTH
OPEN CLOSED
1/8" 10A40602S 5/16" 1/4"- 28 2.750" 5.875" 4.625"
5/32" 10A50602S 5/16" 1/4"- 28 2.750" 6.375" 5.125"
3/16" 10A60602S 5/16" 1/4"- 28 2.750" 6.375" 5.125"
Please click part number to order.





How it works.
The “Lag” cable tensioning system has been developed for direct attachment to wood surface with a minimum of 3” of wood blocking for full thread engagement. Holes are simply pre-drilled into the connecting wood surface and the lag is threaded into the hole. The strength of the cable assembly is limited to the lag holding power and mounting material (solid wood blocking is required). Lag hardware is only recommended for light duty use and not for commercial use.
