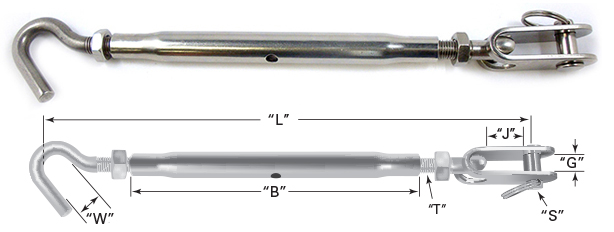

Industrial Turnbuckle - Hook & Jaw
|
| Industrial Hook & Jaw Turnbuckle |
|
316SS |
| Part No. |
*WLL
(lbs.) |
"T"
THREAD |
"L"
LENGTH |
"B"
BODY LENGTH |
"W"
HOOK OPENING |
"G"
JAW
OPENING |
"S"
PIN
DIA. |
"J"
JAW
DEPTH |
| OPEN |
CLOSED |
| 15ATBHJ04 |
85 lbs |
10-32 |
9.250" |
6.750" |
3.500" |
.250" |
.188" |
.188" |
3/4" |
| 15ATBHJ05 |
195 lbs |
1/4"-28 |
10.750" |
7.750" |
4.500" |
.375" |
.250" |
.250" |
3/4" |
| 15ATBHJ06 |
290 lbs |
5/16"-24 |
12.000" |
9.250" |
5.125" |
.500" |
.312" |
.312" |
1" |
| 15ATBHJ08 |
405 lbs |
3/8"-24 |
13.750" |
10.000" |
5.625" |
.625" |
.375" |
.375" |
1-1/8" |
| 15ATBHJ10 |
770 lbs |
1/2"-20 |
16.000" |
11.250" |
7.000" |
.750" |
.500" |
.500" |
1-1/16" |
| 15ATBHJ12 |
1,235 lbs |
5/8"-18 |
18.750" |
13.750" |
8.625" |
.875" |
.625" |
.625" |
1-3/8" |
Please click on part number to order.
*These values are based on an open hook design which are not heat-treated or forged. |
|
|
|
