Product Detail


Manufacturer D & D Technologies

4" Aluminum Half Bolt-on BadAss™ - CI3740A


Price: $114.50
Quantity:

Product discounts do not apply to this item

Untitled Document
  • Overview
  • Schematic
  • Specifications

With wide mounting plates and four anchor points, the 4" Half Bolt-on BadAss™ hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industry's first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

Key Features
• Made to bolt or weld to 4" or 5" fence posts
• Wider brackets enable anchor points to be positioned at the sides, rather than center of fence post - reducing flexing,
   preventing fatigue in fence post
• High-temperature sealed bearings - safe to powder coat with hinges installed on gate
• No greasing, no maintenances. EVER!
• Precision bushing - distributes gate load for optimal performance and longer life
• CNC machined to perfection and near frictionless movement
• Max Gate Load: 1,000 lb (450 kg)
• Max Gate Weight: 600 lb (270 kg)
• Limited Lifetime Warranty

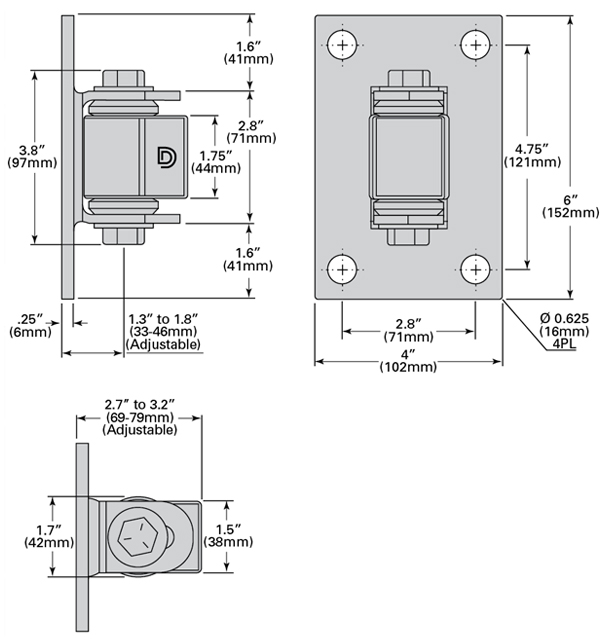

Schmatic



Part No. Gate Type Gate Material Approx.
Gate Size		 Gate Frame
 Min. Post Size Ideal
Gate Gap		 Fixing Method Finish
63BAB3740A Non
Self-Closing		 Aluminum 6ft W x 8ft H
(1.5m x 2m)		 Square-to-Square
Square-to-Round		 1 1/2"+
(38mm)		 3 1/4" - 3 3/4"
(73 - 86mm)		 Bolt-On
Weld-On		 Unfinished
