Cable Art Inc.

Hydraulic closer & hinge,
all-in-one

SureClose® 57 - Center Mount

   • ADA Compliant
   • Adjustable closing speed
   • Visibly small footprint
   • Highly tamper resistant
   • Maintenance free - No messy grease
   • Self-closes gates up to 180lbs.

SureClose 57 is a concealed hydraulic gate closer. It is speed adjustable using the enclosed adjustment tool and designed to never leak hydraulic fluid. Extremely safe and does not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. A real workhorse tested to 500,000 open/close cyles and a 1,500lb. (680kg) point load.

SureClose 57SF is suitable for pool and safety gates. SF models open to and self-close from 90°.* NO hold-open feature.

All SureClose hinges and closers come packaged with the gate mounting bracket included. Post mounting brackets sold separately.

*CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool codes.

	For all square posts, steel or aluminum gates Fits a broad range of applications
	Dual Thrust Bearings Withstands heavy loads
	Aluminum products have 50 micron thick anodizing High corrosion resistance
	Hidden components Tamper resistance
	Point load 1,500lb (680kg) Easily withstands high temporary loads
	Tested to 500,000 cycles Robust and durable
	Left or right handed, inswing or outswing Works on gate swing designs
	Mounting brackets for Flush Mount and Center Mount locksets Works with a variety of latches and locks
	Mounting brackets can be powder coated and/or painted Non-invasive
	Center Mount options provide horizontal adjustment Adjustability assists in installation
	Brackets are pre-threaded Saves time and money on install
	Best warranty in the industry Rigorous testing programs ensure SureClose is of the highest quality, enabling us to back each model with a 2-year manufacturer warranty.

ITEM #	TYPE	DESCRIPTION	SELF CLOSE 90°	MAX GATE SWING	FINAL SNAP ACTION	POOL / CHILD SAFETY*	HORZ. ADJUST	GATE GAP†	FENCE POST SIZE MIN.	MOUNT TYPE
75057114	57 W	Hydraulic hinge & closer (Steel)	Yes	90°	No	No	Yes	2 1/2"- 3"	2 1/2"	Center

All closer/hinges come with gate mounting bracket included. Post mounting brackets sold separately.
* Yes (SF) = Gate will not hold open at 90° (OK for safety gates). Do NOT use a hinge with a 90° hold open feature (No) for pool/child safety gates.
† Do not exceed max. gate gap of 3"

IMPORTANT: For maximum gate weights, please see weight chart.

SureClose SF models require a separate gate stop. Click here for examples.

TYPE	VIEW	PRINT / DOWNLOAD	LENGTH
SureClose® Brochure	-	Print / Download PDF
SureClose® Center Mount Installation Instructions	-	Print / Download PDF
SureClose® Flush Mount Screw-On Installation Instructions	-	Print / Download PDF
SureClose® Flush Mount Weld-On Installation Instructions	-	Print / Download PDF
SureClose® SM Dimensional Drawings	-	Print / Download PDF

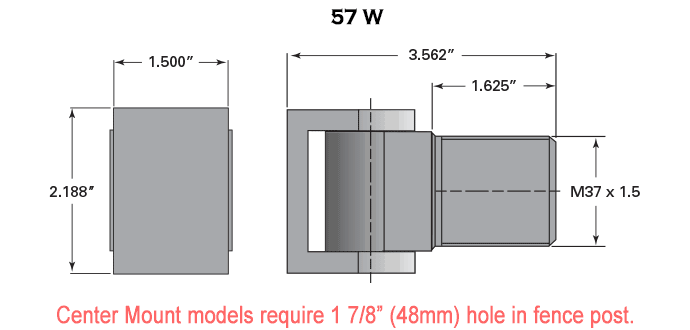

SureClose® 57 & 57SF Dimensional Drawings	-	Print / Download PDF
SureClose® 108 & 108SF Dimensional Drawings	-	Print / Download PDF
SureClose® Center Mount Brackets Dimensional Drawings	-	Print / Download PDF
SureClose® Flush Mount Brackets Dimensional Drawings	-	Print / Download PDF
SureClose® Gate Sweeps	-	Print / Download PDF
SureClose® Promotional Video	Open Video	-	2:21
SureClose® Flush Mount Installation Video	Open Video	-	3:02
SureClose® Center Mount Installation Video	Open Video	-	3:05
SureClose® Welding Information Video	Open Video	-	3:20
