Product Detail


Manufacturer D & D Technologies

SureClose® Flush Mount (Weld-on) - 108 AT90 W - 75108214


Price: $284.95
Quantity:

Product discounts do not apply to this item

  • SureClose®
  • Overview
  • Features
  • Specifications
  • Images/Videos
  • Installation Info
  • Hinge Dimensions

Hydraulic closer & hinge,
all-in-one
sureclose logo
SureClose® 108 - Flush Mount

   • ADA Compliant
   • Final snap action
   • Adjustable closing speed
   • Visibly small footprint
   • Highly tamper resistant
   • Maintenance free - No messy grease
   • Self-closes gates up to 260lbs.

SureClose 108 is a concealed hydraulic gate closer. It features Final Snap Action (FSA) which increases speed at the end of closing to overcome electric or coded locks. Both closing speed and FSA are adjustable using the enclosed adjustment tool.

Designed to never leak hydraulic fluid, the SureClose 108 is extremely safe and does not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. Tested to 500,000 open/close cyles and a 1,500lb. (680kg) point load.

SureClose 108SF is suitable for pool and safety gates. SF models open to and self-close from 90°.* NO hold-open feature.

All SureClose hinges and closers come packaged with the gate mounting bracket included. Post mounting brackets sold separately.

*CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool codes.



d & d tech logo For all square posts, steel or aluminum gates
Fits a broad range of applications
d & d tech logo Dual Thrust Bearings
Withstands heavy loads
d & d tech logo Aluminum products have 50 micron thick anodizing
High corrosion resistance
d & d tech logo Hidden components
Tamper resistance
d & d tech logo Point load 1,500lb (680kg)
Easily withstands high temporary loads
d & d tech logo Tested to 500,000 cycles
Robust and durable
d & d tech logo Left or right handed, inswing or outswing
Works on gate swing designs
d & d tech logo Mounting brackets for Flush Mount and Center Mount locksets
Works with a variety of latches and locks
d & d tech logo Mounting brackets can be powder coated and/or painted
Non-invasive
d & d tech logo Center Mount options provide horizontal adjustment
Adjustability assists in installation
d & d tech logo Brackets are pre-threaded
Saves time and money on install
d & d tech logo Best warranty in the industry
Rigorous testing programs ensure SureClose if of the highest quality, enabling us to back each model
with a 2-year manufacturer warranty.


ITEM # TYPE DESCRIPTION SELF
CLOSE
90° 		MAX
GATE
SWING		 FINAL
SNAP
ACTION		 POOL /
CHILD
SAFETY* 		HORZ.
ADJUST		 GATE
GAP†		 FENCE
POST
SIZE MIN.		 MOUNT
TYPE
75108214 108 AT90 W Hydraulic hinge
& closer
(Steel) 		Yes 180° Yes  No No 1/2"
 3"
 Flush
All closer/hinges come with gate mounting bracket included. Post mounting brackets sold separately.

* Yes (SF) = Gate will not hold open at 90° (OK for safety gates). Do NOT use a hinge with a 90° hold open feature (No) for pool/child safety gates.
† Do not exceed max. gate gap of 3"

IMPORTANT: For maximum gate weights, please see weight chart.

SureClose SM hinges should only be used together with a SureClose 57SF or 108SF closer for pool/child safety gates.

SureClose SF models require a separate gate stop. Click here for examples.















TYPE VIEW PRINT / DOWNLOAD LENGTH
SureClose® Brochure - Print / Download PDF
SureClose® Center Mount Installation Instructions - Print / Download PDF
SureClose® Flush Mount Screw-On Installation Instructions - Print / Download PDF
SureClose® Flush Mount Weld-On Installation Instructions - Print / Download PDF
SureClose® SM Dimensional Drawings - Print / Download PDF
SureClose® 57 & 57SF Dimensional Drawings - Print / Download PDF
SureClose® 108 & 108SF Dimensional Drawings - Print / Download PDF
SureClose® Center Mount Brackets Dimensional Drawings - Print / Download PDF
SureClose® Flush Mount Brackets Dimensional Drawings - Print / Download PDF
SureClose® Gate Sweeps - Print / Download PDF
SureClose® Promotional Video Open
Video		 - 2:21
SureClose® Flush Mount Installation Video Open
Video		 - 3:02
SureClose® Center Mount Installation Video Open
Video		 - 3:05
SureClose® Welding Information Video Open
Video		 - 3:20

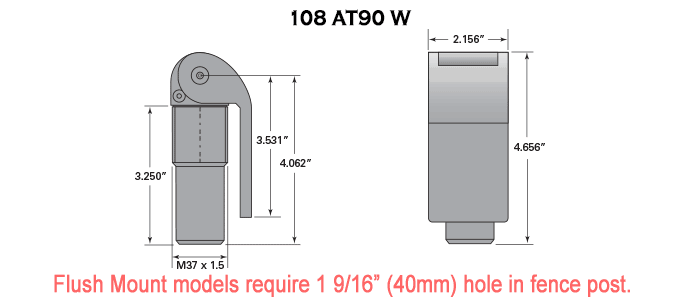

dimensions
