Traditional Toggle Jaw Turnbuckles
 |
- How It Works
- Toggle Jaw Turnbuckle
- Jaw Mounting Hardware
|
How it works.
Utilizing “Clevis” style ends for cable attachment, this system allows for connection to eye bolts, tee-stock, angle iron, flat bars, loops, etc. The toggling feature allows for angled takeoff without the use of additional hardware. Toggle ends come standard with screw and lock nut; however, also available with clevis pin, with cotter pin or ring pin upon request. For matching Non-Tensioning Fittings, use Series 10. |
| Traditional Toggle Jaw Turnbuckles |
SWAGE |
|
316SS |
| Cable Dia. |
Part No. |

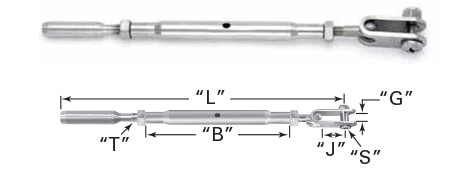

"T"
THREAD |
"B"
BODY |
"L"
LENGTH |
"J"
JAW DEPTH |
"S"
SCREW SIZE |
"G"
JAW WIDTH |
|
OPEN |
CLOSED |
| 1/8" |
10A40200 |
10-32 |
3.500" |
8.500" |
6.000" |
.563" |
#10 |
.250" |
| 1/8" |
10A40202 |
1/4"-28 |
4.250" |
9.625" |
7.625" |
.875" |
.250" |
.250" |
| 5/32" |
10A50202 |
1/4"-28 |
4.250" |
10.125" |
8.125" |
.875" |
.250" |
.250" |
| 3/16" |
10A60202 |
1/4"-28 |
4.250" |
10.125" |
8.125" |
.875" |
.250" |
.250" |
| 3/16" |
10A60204 |
5/16"-24 |
4.750" |
11.000" |
9.000" |
.875" |
.313" |
.313" |
| 1/4" |
10A80202 |
5/16"-24 |
4.750" |
11.500" |
9.500" |
.875" |
.313" |
.313" |
| 1/4" |
10A80204 |
3/8"-24 |
5.250" |
12.250" |
10.250" |
1.063" |
.375" |
.375" |
