Classic Ball End Turnbuckles
- Classic Ball End Turnbuckle
- How It Works

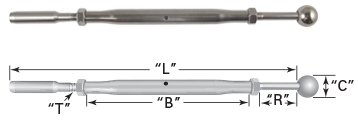

| Classic Ball End Turnbuckles |
SWAGE |
|
316SS |
| Cable Dia. |
Part No. |
"T"
THREAD |
"B"
BODY |
"L"
LENGTH |
"R"
LENGTH |
"C"
BALL DIA. |
| OPEN |
CLOSED |
| 1/8" |
15A40802 |
1/4"- 28 |
4.50" |
11.00" |
7.37" |
1.00" |
.62" |
| 1/8" |
15A40804 |
1/4"- 28 |
4.50" |
13.37" |
9.75" |
3.37" |
.62" |
| 3/16" |
15A60802 |
1/4"- 28 |
4.50" |
11.75" |
8.12" |
1.00" |
.62" |
| 3/16" |
15A60804 |
1/4"- 28 |
4.50" |
14.12" |
10.50" |
3.37" |
.62" |
| 1/4" |
15A80802 |
5/16"-24 |
5.12" |
14.75" |
10.87" |
3.12" |
.62" |
| Please click part number to order. |
|
|
How it works.
The Classic Ball End Turnbuckle is made to accept the angles of stairways. the Ball end allows the turnbuckle to integrate itself to your desired angle. The ball allows this turnbuckle to gimbal in its mount. For matching Non-Tensioning Fitting, use Series 15.
|
|
|
|
